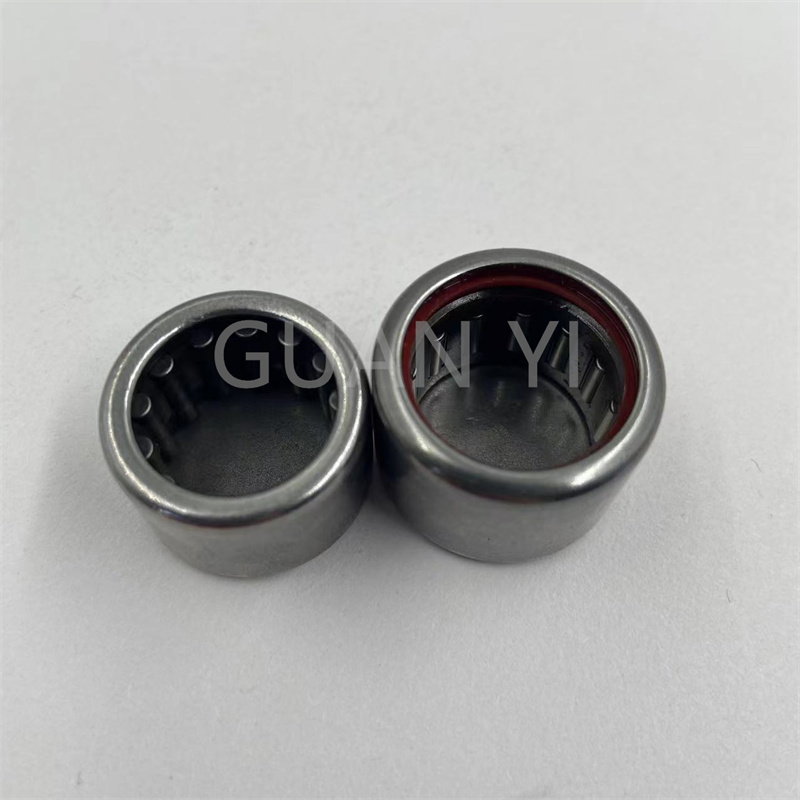

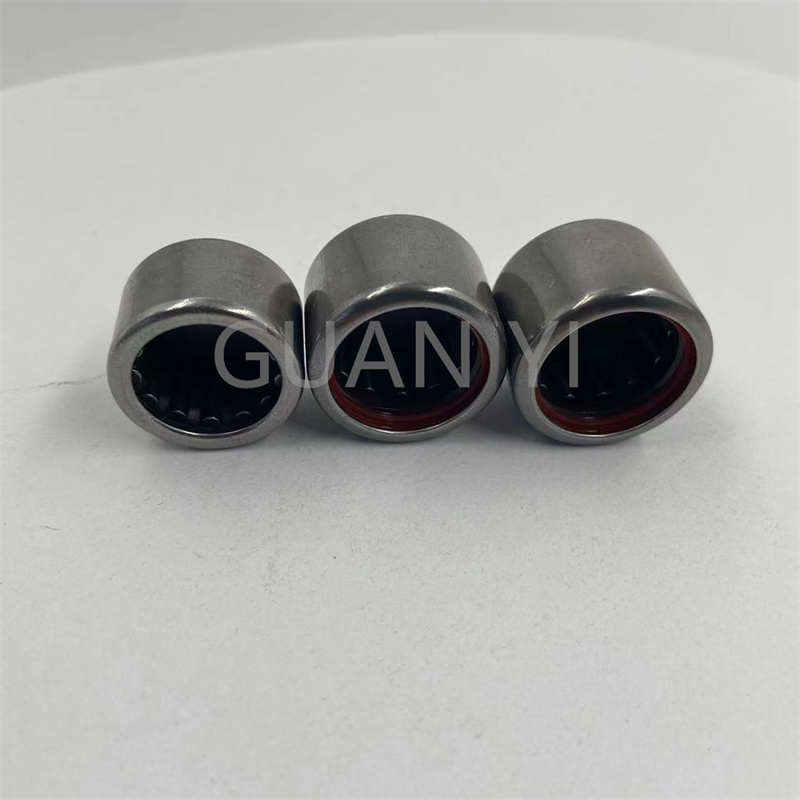

OTOTRI FC10 Drawn Cup One Way Needle Bearing for Textile Machine and Long-Lasting Performance

Name: OTOTRI FC10 Drawn Cup One Way Needle Bearing for Textile Machine and LongLasting Performance
Brand: OTOTRI
Price: 0.1 USD

Buy cheap OTOTRI FC10 Drawn Cup One Way Needle Bearing for Textile Machine and Long-Lasting Performance product

Brand Name : OTOTRI

Model Number : FC10

Place of Origin : Changzhou Jiangsu China

MOQ : 100pcs

Price : 0.1~100$/pcs

Delivery Time : 5-7 days after receiving your payment

Supply Ability : 10000pcs/week

Certification : ISO

Packaging Details : Plastic packaging + brand box + carton

Payment Terms : L/C,T/T,Western Union,MoneyGram,Paypal

Bore Size : 1 - 10 mm

Applicable Industries : Retail

Type : Needle

Precision Rating : P6

Seals Type : OPEN / RS /ZZ

Number of Row : Single Row / Double

Product name : FC10

Material : GCR15

Package : Plastic Tube+Carton+Pallet

Application : Auto Parts

Service : OEM Customized Services

Sample : Availble

Model : FC10

Size : 10*16*12mm

Feature : High Speed Low Noise

Brand : OTOTRI

Product Name : Needle Roller Bearing

Precision Grade : P5 P6

OEM/ODM : Available

Cage Material : Steel , Nylon

Clearance : C0,C2,C3,C4,C5 is available

Contact Now

Inch series One Way Needle Roller Bearing FC10 Drawn Cup One Way Needle Bearing For Textile Machine

Product Description

FC, RC, FCL, RCB, Needle Bearing Roller Clutch Metric & Inch
Roller Clutch Bearings RC and RC-FS inch type FC, FCS and FCL-K metric type clutch series. Nominal dimensions with rounded conversions are shown in the product detail page. Types FC, FCS, FCL-K and RC-FS Clutches have stainless steel springs inserted in the , molded cage to position the rollers for instantaneous lockup. RC Type clutches have springs integrally molded with the cageto position the rollers for instantaneous lockup. Before ordering any clutch check for availabilty Contact Us.

OTOTRI FC10 Drawn Cup One Way Needle Bearing for Textile Machine and Long-Lasting Performance

P/N	Inch series One Way Needle Roller Bearing FC Series One Way Needle Bearing FC16 for Machinery Repair Shops
Brand	OEM
Precision	ABEC-1
Type	Needle Roller Bearings
Lubrication	Oil
Material	Chrome Steel
Package	Plastic Bag and Box
Payment Item	T/T ,Western Union , Paypal ,Credit card
Delivery time	3-10day

Product DetailsType: Metric
ID MM: 10
ID Decimal: 0.3937
OD Decimal: 0.6290
OD MM: 16
W Decimal: 0.4720
W MM: 12
Interchange: INA - N/A, Torrington FC-10, Consolidated FC-10
Weight: 0.01

The mounted clutch engages when the housing is rotated relative to the shaft in the direction of the arrow marking stamped on the
clutch. When manufactured the outer cup of the clutch is accurately drawn from strip steel, it can go slightly out of round
durning heat treatment. When the assembly is pressed into a ring gauge or properly prepared houding of the correct size and wall
thickness, it becomes round and is properly sized. The proper inspection procedure is as follows: 1. Press the assembly into a
ring gauge of the proper size as given in the tabular data.
2. Gauge the bore with the
specified plug gauges of the proper size, as given in the tables of diamensions.

* a. The locking plug is rotated to insure lockup when the clutch is operated on low limit shaft and ids mounted in high limit
housing strong enough to properly size the clutch.
* b. The overrun plug is rotated to insure free overruning when the clutch is operated on high limit shaft and is mounted in a
low limit housing.
* c. The go plug and no go plug insure proper size of the bearings in the clutch and bearing assemblies.

Size Information

Shaft	Model No.	Weight	BoundaryDimensions					Limiting Speed
Diameter			Fw	D	C	Grease	Oil
mm		9	mm			rpm
4	HFL0408	1.6	4	8	8	34000	14000
6	HFL0615	4	6	10	15	23000	13000
8	HFL0822	6.3	8	12	22	17000	12000
10	HFL1022	7.4	10	14	22	14000	11000
12	HFL1226	18	12	18	26	11000	8000
14	HFL1426	20.3	14	20	26	9500	8000
16	HFL1626	22	16	22	26	8500	7500
18	HFL1826	24.4	18	24	26	7500	7500
20	HFL2026	27	20	26	26	7000	6500
25	HFL2530	44	25	32	30	5500	5500
30	HFL3030	51	30	37	30	4500	4500
35	HFL3530	58	35	42	30	3900	3900
